ESA REPAIR!
The ESA (Electronic Suspension Adjustment) offers immediate suspension adjustments without tools, even while riding. It is operated using a thumb button on the left handlebar. The shockabsorbers manufactured by Showa, WP and Marzochi are used by Yamaha, KTM, Triumph, BMW and Honda. All of these shockabsorbers are fully serviceable by ESA Repair.
All Activities are done at the same procedure as done by factory, which means that it still meets the high standard requirements. But even these quality shockabsorbers needs Overhaul, they may have sometimes leakage or the adjustments doesn’t work anymore. Do you need a new expensive shockabsorber? No, ESA Repair can do the job for you. We can repair any problem in the shockabsorber, regardless it is hydraulic (leakage), mechanical or electrical (no adjustments).
At ESA Repair we are able to service/repair these shockabsorbers units using genuine parts and offer a full warranty on our work.

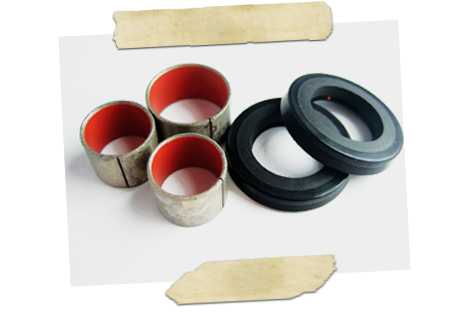

Overhaul (service 1)
Leaking shockabsorbers? Choose service 1.
Service 1 includes.
– Full strip down of shock absorber components
– Clean outside AND inside parts
– Examine parts for damage or wear
– Inspect and polish piston rod
– Strip piston and shims, clean and rebuild
– Strip rebound system
– Replace oil seal and guide bush
– Inspect dust seal and replace if required
– Inspect stepper engine / stepper engine seals
– Rebuild shock absorber on our vacuum device
– Run a test on our dynotest machine, heated up to 200F
Full service with genuine parts WP & Showa ESA shock.
Below is an example list of model types we can service. Is yours not listed? Reach out to us to figure out wether it’s still possible.
|
K 1200 GT |
02-04 |
|
K 1200 GT ESA |
05-08 |
|
K 1200 LT |
99-08 |
|
K 1200 RS |
97-00 |
|
K 1200 RS |
01-04 |
|
K 1200 S ESA |
05-08 |
|
K 1200 GT ESA |
05> |
|
R 1200 C CRUISER (GREY SPR) |
97> |
|
R 1200 CL (GREY SPR) |
04> |
|
R 1200 GS |
04-05 |
|
R 1200 GS |
06-12 |
|
R 1200 GS lc (non ESA) |
13-18 |
|
R 1200 GS ESA |
07-10 |
|
R 1200 GS ESA |
10-12 |
|
R 1200 GS lc ESA |
13-16 |
|
R 1200 GS lc ESA |
17-18 |
|
R 1200 GS lc ESA Factory lowered |
13-18 |
|
R 1200 GS ADVENTURE |
06-13 |
|
R 1200 GS ADVENTURE ESA |
07-10 |
|
R 1200 GS ADVENTURE ESA |
10-13 |
|
R 1200 GS lc ADVENTURE ESA |
14-18 |
|
R 1200 GS lc ADVENTURE (non ESA) |
14-18 |
|
R 1200 GS lc RALLYE ESA |
17-18 |
|
R NineT |
14-16 |
|
R NineT Pure |
17-19 |
|
R NineT Racer |
17-19 |
|
R NineT SCRAMBLER / URBAN G/S |
15-19 |
|
R NineT Scrambler factory low |
17-19 |
|
R 1200 R No ESA |
07-14 |
|
R 1200 R ESA |
07-10 |
|
R 1200 R ESA |
11-14 |
|
R 1200 R No ESA |
15-18 |
|
R 1200 RT No ESA |
05-14 |
|
R 1200 RT ESA |
06-09 |
|
R 1200 S (ohlins shocks) |
05> |
|
R 1250 GS lc ESA |
18-19 |

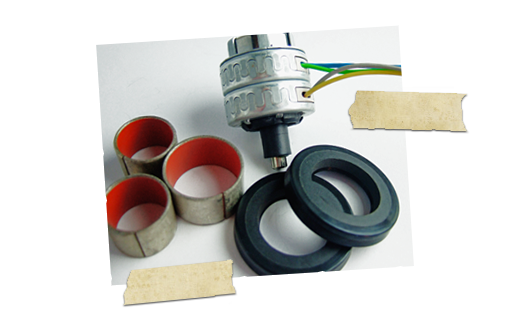

Replacement (service 2)
Service 2 includes.
– Full strip down of shock absorber components
– Clean outside AND inside parts
– Examine parts for damage or wear
– Inspect and polish piston rod
– Strip piston and shims, clean and rebuild
– Strip rebound system
– Replace oil seal and guide bush
– Inspect dust seal and replace if required
– Inspect stepper engine / stepper engine seals
– Rebuild shock absorber on our vacuum device
– Run a test on our dynotest machine, heated up to 200F

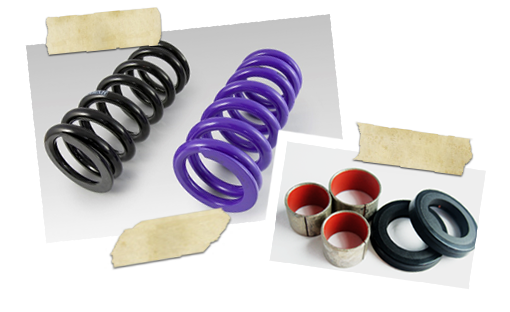

Springset (service 3)
Service 3.
Using good suspension and damping provides more safety on the bike. And it’s one of the cheapest ways to improve your motorcycle!
We deliver progressive springs. The spring feels easy at the start and comfortabel and further in the wheelstroke, the force of the spring gradually rising to a stiff spring. All this will bring lots of fun and handling possibilities to your bike.
– New vacuumed high performance shockabsorber oil
– New seals
– New bushing
– Dynorun
– Mounting Hyperpro SpringService 3.
Using good suspension and damping provides more safety on the bike. And it’s one of the cheapest ways to improve your motorcycle!
We deliver progressive springs. The spring feels easy at the start and comfortabel and further in the wheelstroke, the force of the spring gradually rising to a stiff spring. All this will bring lots of fun and handling possibilities to your bike.
– New vacuumed high performance shockabsorber oil
– New seals
– New bushing
– Dynorun
– Mounting Hyperpro Spring
EPA ESA2 Service
The chromium sleeve
Tractive ESA Replacement
(service 4)
Service 4.
The electronic spring adjuster (even called riders height adjuster) is been placed on the new Touratech damper. All ESA functions will be preserved! When you have special wishes about spring-rate (read heavy duty) / heavy load / dual ride, we can mount a personal selected spring on the damper.
Service 4 includes the following items:
– Tractive: a high-end product at an affordable price, with balanced damping.
– The mounting rubbers have been replaced by spherical plain bearings. These high end bearings will give you an excellent feeling in your bike. The damper will be able to do its job without friction at the glide bearing and seal.
– All these high tech parts will give you the excellent results in road holding capabilities.
These can we ordered at our partner tractive online. A re-direct to their website is available on the button below.
It happened! The cancellation kit R1200GS / ADV is readyIt happened! The cancellation kit R1200GS / ADV is ready

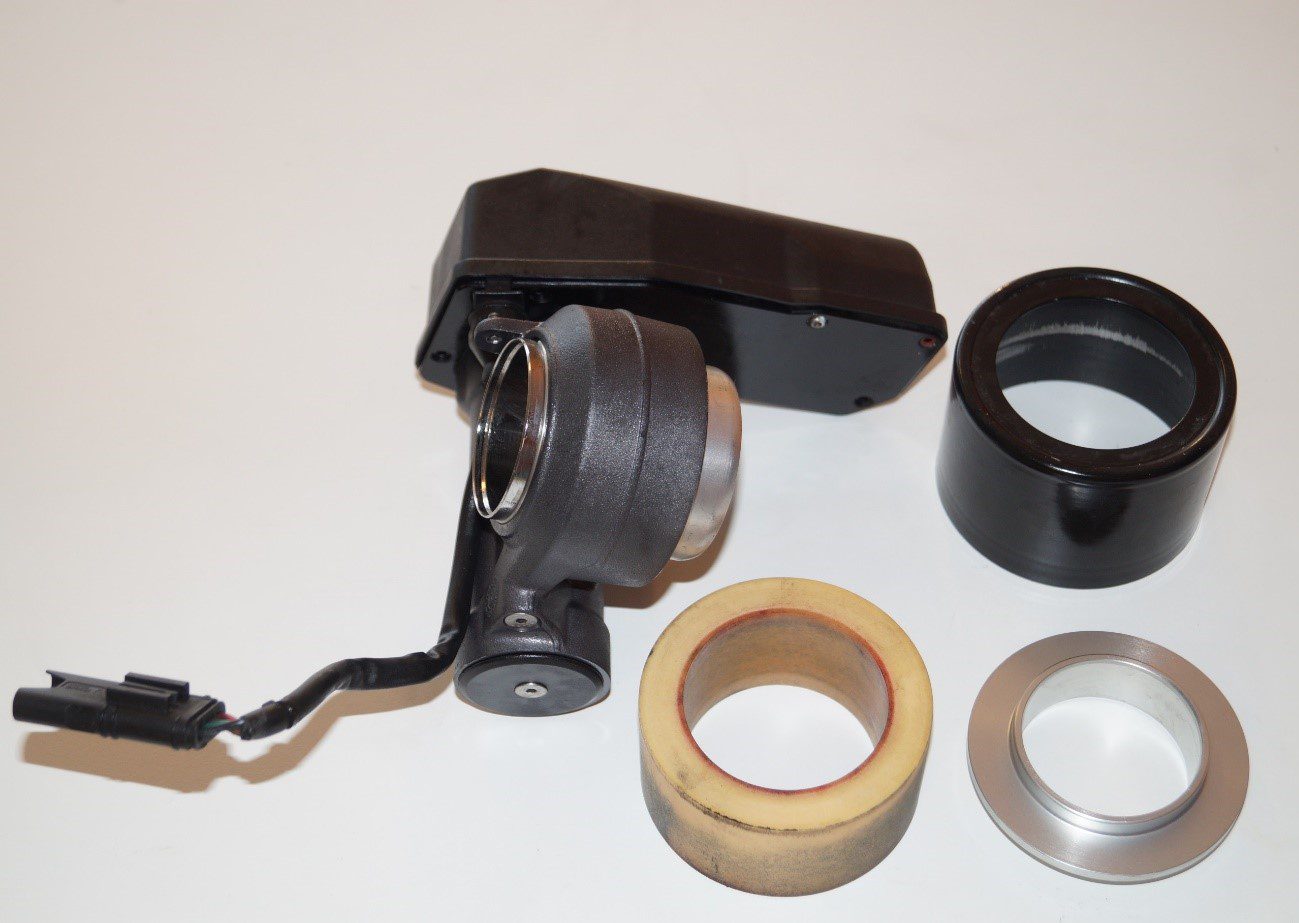

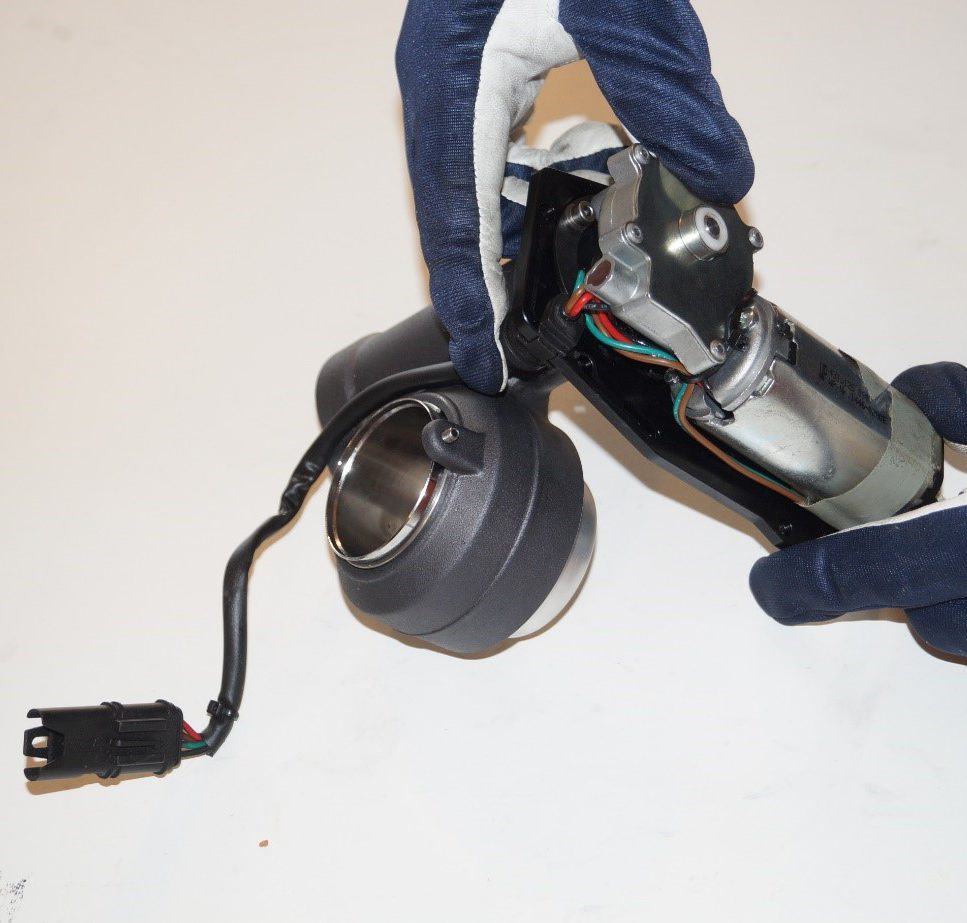

R1200GS / ADV ESA Preload Motor Cancellation
kit.
Eliminates fault codes and allows access to all
ESA damping settings when ESA electric preload motor is no longer functional or
has been removed.
Allows rear ESA electric preload adjuster to
function without the front preload motor being active and vice versa.
What are the ESA settings and what do they
do?
ESA Damping display settings for optimizing
ride quality and handling:
Comfort
Normal
Sport
Soft (GS/A)
Hard (GS/A)
ESA Preload display settings for adjusting
spring tension and setting sag:
One Rider
One Rider With Luggage
Two Riders
Oil Cooled GS/GSA models add Small Mountain
and Big Mountain
In the “One Rider” lightest preload position,
the damping settings of Comfort, Normal and Sport are softer.
In the “One Rider with Luggage” medium
preload position, the three damping settings are slighter firmer.
In the “Two Rider” max preload position, the
three damping settings are firmer still. Similar when in Small Mountain or Big
Mountain settings on the GS/A models.
By installing the cancellation module, you
can still advance through the “preload” settings and access all the different
“damping” settings even if the preload motor is defective or has been removed.
Notable applications which are only possible
with the Cancellation Kit:
On the Oil Cooled GS/GSA models the rear
preload motor will still be functional even if the front preload motor has
failed or has been removed and vice versa by cancelling the fault code.
Compact and lightweight. Supplied with
correct connector for simple plug and play installation. Instructions included.
Finally it’s possible to install any front shockabsorber brand without a height adjuster with keeping all the ESA factory adjustments of your bike.
Upgrade examples:Finally it’s possible to install any front shockabsorber brand without a height adjuster with keeping all the ESA factory adjustments of your bike.
Upgrade examples:
How does it work?
There are number of instructions to be followed at the time of refilling an inket cartridge. So whenever your printer ink runs dry you need to follow the below steps for inkjet cartridge refill.
Step 1
Disassemble your shockabsorber from your motorbike according to the original assembly instruction. Would you like our assitance with this contact us down below. Disassemble your shockabsorber from your motorbike according to the original assembly instruction. Would you like our assitance with this contact us.
Step 2
Select your preferred service, click the order button and fill in the form. Select your preferred service, click the order button and fill in the form.
Step 3
MillSend the shockabsorber preferably with DHL (click the button to calculate the price) including the printed version of the mail to:
Esa Repair
Houtzagerijstraat 5
5451 HZ
Mill
Ensure that the shock absorber is carefully packaged, it is your responsibility.Ensure that the shock absorber is carefully packaged, it is your responsibility.
Step 4
After receiving your package we are trying to return the overhauled shockabsorber within 5 workdays back to you. Use the original assembly instruction. After payment of the invoice we will send the shockabsorber back to you.After receiving your package we are trying to return the overhauled shockabsorber within 5 workdays back to you. Use the original assembly instruction. After payment of the invoice we will send the shockabsorber back to you.
